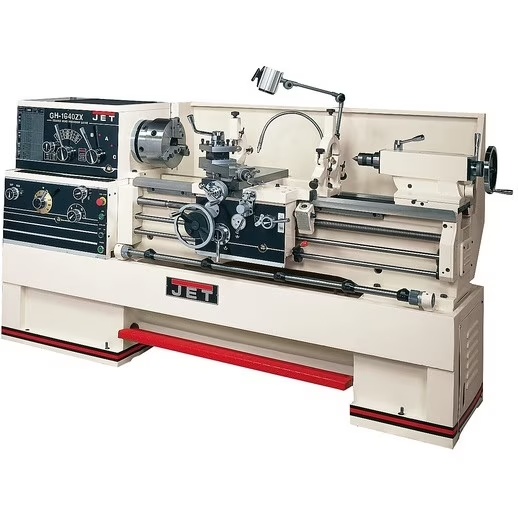

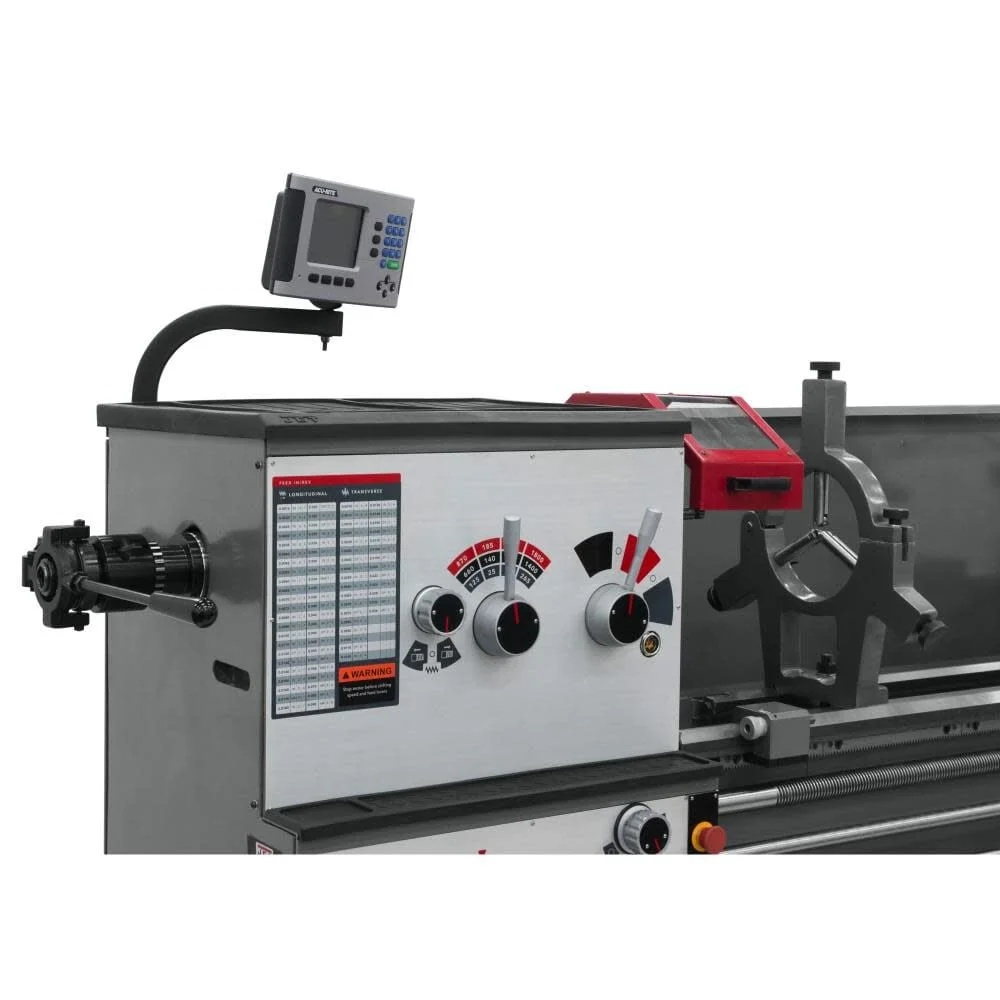

JET 321493 Lathe with 2-Axis ACU-RITE Digital Readout 200S Collet Closer and Taper Attachment Installed

Description

JET 321493 Lathe with 2-Axis ACU-RITE Digital Readout 200S Collet Closer and Taper Attachment Installed

This workshop tool or accessory is offered in the configuration identified by the selected title and product photographs. The details below describe the stated dimensions, construction, components and operating arrangement where these are provided. Compare these details with the space, equipment and intended application before choosing the item.

Features and configuration

• Speed selection: Multiple or variable operating speeds are stated. Select the setting appropriate to the task using the fitted controls.

Specifications

Specifications AC Voltage	230/460V
Bed Width	10-1/2 in.
Carriage Travel	37-1/2 in.
Cross Slide Travel	6-3/8 in.
Distance Between Centers	40 in.
Drive Type	Geared Head
Follow Rest Capacity	2-3/4 in.
Horsepower	3
Length of Gap	9-3/8 in.
Max. Compound Slide Travel	3-1/2 in.
Max. Tailstock Spindle Travel	4-3/4 in.
Motor Phase	3
No. of Cross Feed Rates	40
No. of Inch Threads	40
No. of Longitudinal Feed Rates	40
No. of Metric Threads	22
PreWired Voltage	230V
Range of Cross Feeds (IPR)	0.0003 in. – 0.0103 in.
Range of Inch Threads (TPI)	4 – 112
Range of Longitudinal Feeds (IPR)	0.0012 in. – 0.0294 in.
Range of Metric Threads	0.45mm – 7.5mm
Spindle Bore	1-1/2 in.
Spindle Mount	D1-4
Spindle Mount Taper	MT-5
Spindle Speed Range (RPM)	40 – 1,800
Spindle Speed Settings	12
Steady Rest Capacity	3-3/4 in.
Swing Over Bed	14 in.
Swing Over Cross Slide	8-1/2 in.
Swing Through Gap	20 in.

Additional product details

• High quality ANSI Class 50 wear resistant cast iron bed ways are hardened and ground.
• Removable gap allows up to 23-5/8 in.
• diameter work on 16 in.
• and 27-1/2 in.
• Includes GH-1880ZX Lathe with 2-Axis ACU-RITE DRO 200S, Collet Closer and Taper Attachment Installed – 321493
• 3-Jaw Chuck with Top Reversing Jaws
• 4-Way Tool Post
• Spindle Sleeve (MT-7 and MT-5)
• – 0.0103 in.
• – 0.0294 in.
